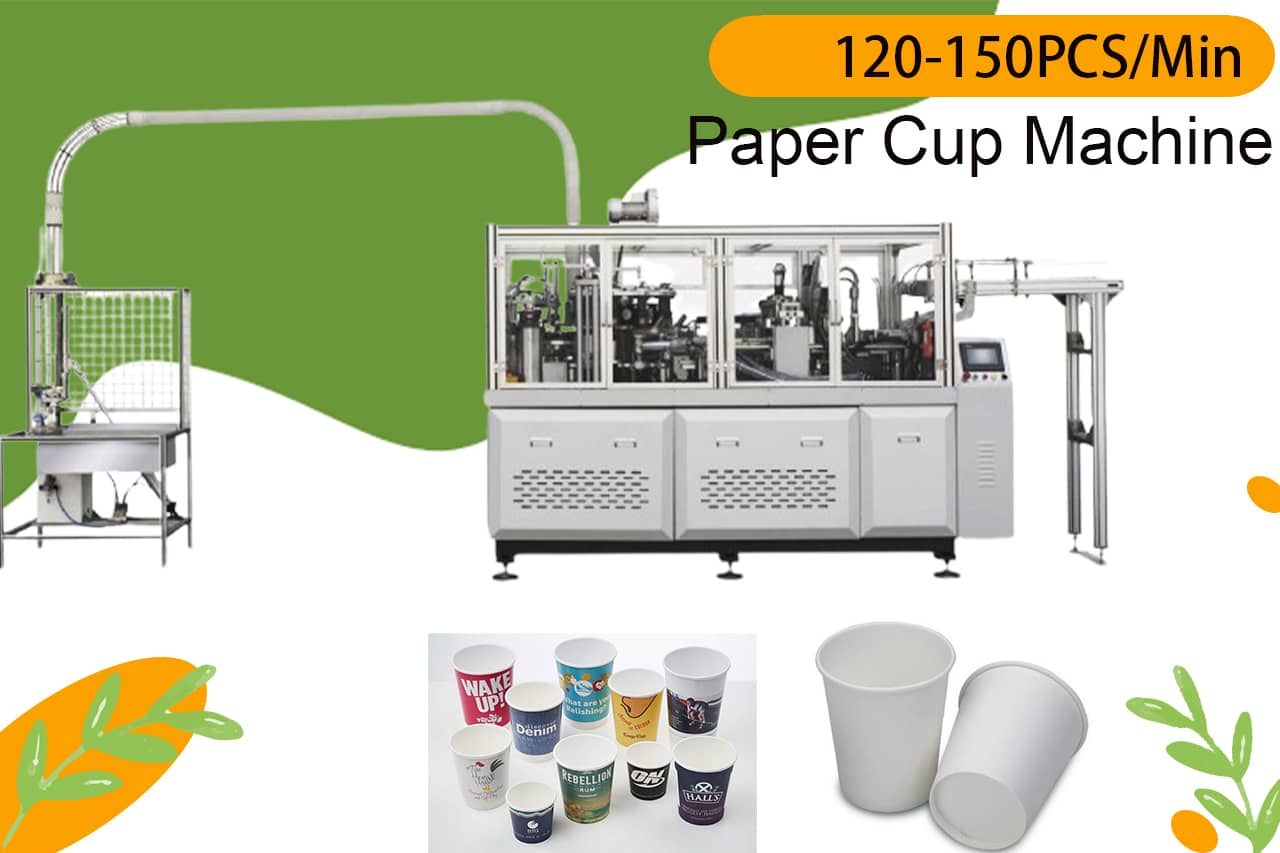

BTM designs 120-150pcs/min high speed paper cup machine for large-scale high-speed production of 5-16oz cold/hot paper cups. This equipment adopts a turntable multi-station design, and through the cycle operation of 8 sets of precision forming molds, it realizes the full process of fully automated production from loading, forming, ultrasonic welding, and unloading. As a paper cup machine manufacturer, BTM also provides paper cup machines with various production speeds such as 50-70pcs/min, 70-90pcs/min, 90-120pcs/min. Our production equipment meets the needs of large, medium and small paper cup manufacturers.
High Speed Paper Cup Making Machine Application Scenarios
The equipment is particularly suitable for:
1. Central factory of chain catering enterprises: 150,000-180,000 paper cups can be produced in a single shift to meet the centralized distribution needs of regional stores
2. Foreign trade export processing: CE and FDA certified, supporting customization of 3-22oz multiple specifications
3. Environmentally friendly packaging transformation: compatible with sustainable materials such as bamboo pulp paper and sugarcane fiber, helping enterprises obtain carbon neutrality certification
120-150pcs/Min Paper Cup High Speed Machine Parameters
| 机器型号 | Model | BTM- 120 |
| 重量 | Weight | 4000 kg |
| 机器装箱规格 | Machine packing specification | L2800 x W1100 x H1800mm |
| 电源配置 | Power configuration | Three pphase 380V, 25KW |
| 压缩空气配置 | Compressed air configuration | 0.6-0.8MPa, 0.5m3/min |
| 产能 | capacity | 120-150 pcs/min |
| 纸张种类 | Paper type | Single PE/double PE/PLA |
| 纸张克重 | Paper weight | 210-330g/m2 |
| 纸杯规格 | Paper cup specification | （D1 cup mouth）Ф5O-9Omm |
| （D2 bottom）Ф45-72mm | ||
| （H cup height） 50-138mm | ||
| （h bottom depth) 5-12mm | ||
| 纸杯检测装置 | Paper cup detection device | 7inch |
| 控制屏 | Control panel | |
| 收杯架 | Cup collecting rack | 1000 x 650 x 1 600mm |
Advantages Of High Speed Paper Cup Machine
1. The unique cup tube positioning device is fine-tuned by the servo motor and cooperates with the three-axis linkage manipulator to ensure that there is no offset or deformation during the cup body forming process, and the qualified rate of finished products reaches more than 99.8%.
2. The intelligent temperature control module can monitor 20 temperature control points in real time and control the heat sealing temperature fluctuation within ±1℃. This technology enables the equipment to adapt to different raw materials such as PE coated paper and PLA degradable materials to meet the requirements of food grade safety certification.
3. It is suitable for a wide range of materials, and can be used to make paper cups with single-layer PE/PLA, double-layer PE/PLA, PE/aluminum or water-based barrier coated paperboard.
4. The clamping, knurling wheel and curling station can be adjusted above the main machine without adjusting inside the main frame, making work easier and time-saving.
5. The whole high speed paper cup making machine adopts PLC control and selects high-end products from Mitsubishi of Japan. All motors are independently controlled by inverters to adapt to a wider range of paper characteristics.
6. The paper feed table is a double-layer design to prevent paper scraps from entering the main machine. The workbench width is reasonably designed, making maintenance more convenient.
Paper Cup High Speed Machine Details
Paper cup production steps:

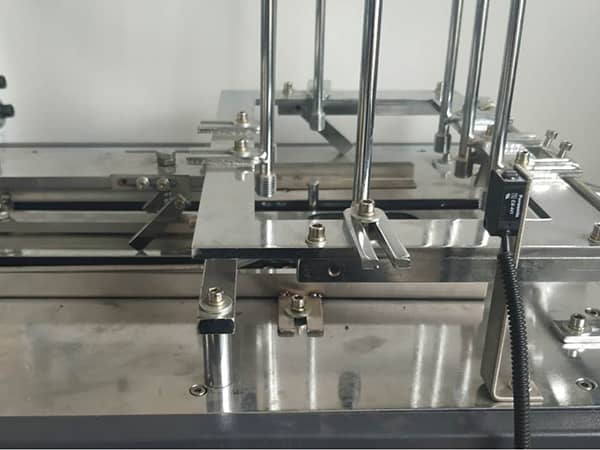

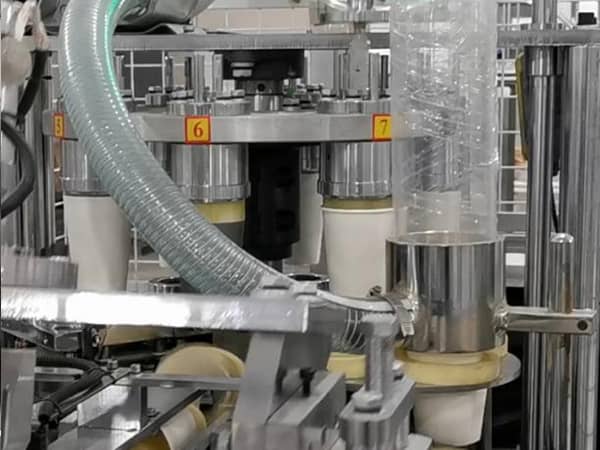

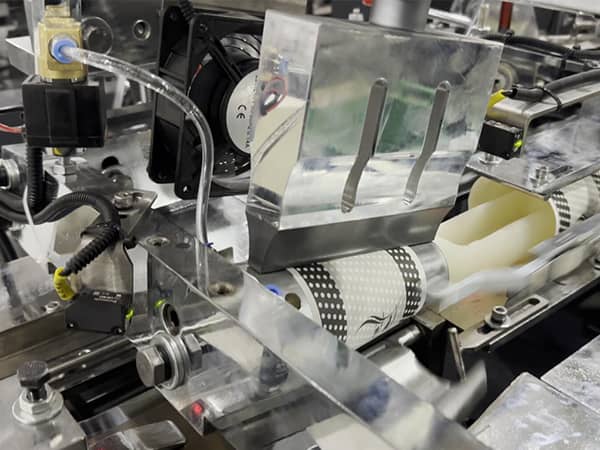

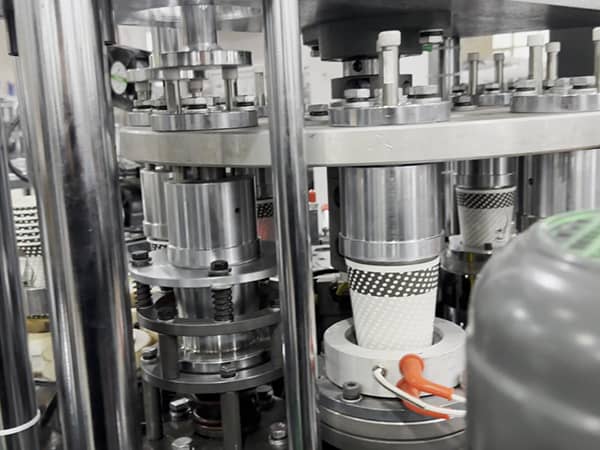

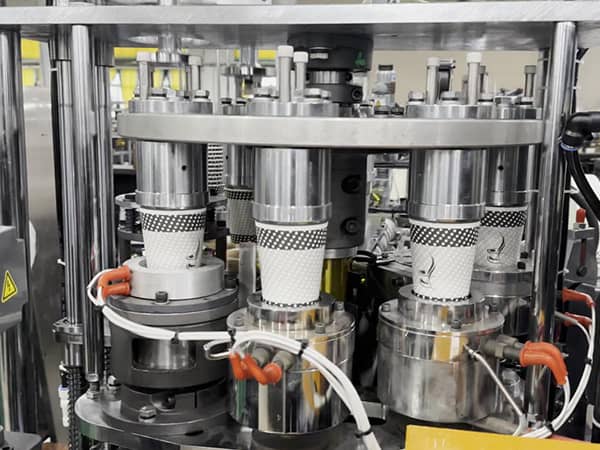

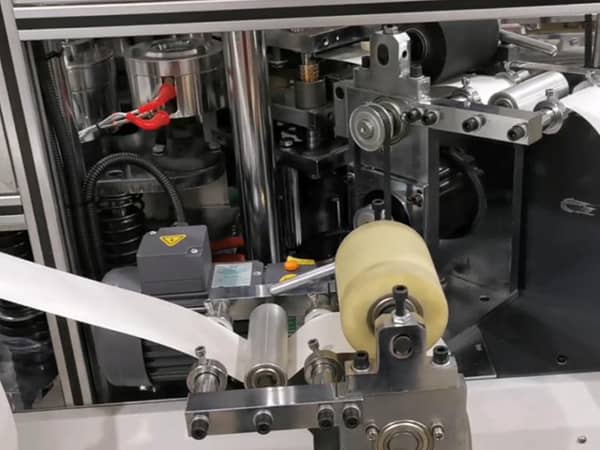

Paper blank feeding → edge seam heating → clamp sealing → cup sleeve transfer → bottom molding and insertion → male mold → bottom heating 1 → bottom heating 2 → bottom oiling → bottom curling → bottom knurling → semi-finished product transfer → cup rim oiling → curling 1 → curling 2 → discharge to counting and stacking
How About The High Speed Paper Cup Machine Price？
Do you want to know how much the high speed paper cup machine price is? BTM paper cup machine manufacturer introduces the following factors that affect the price of paper cup machines:
1. Production capacity: The production capacity of the paper cup machine directly affects its price. The higher the production capacity of the machine, the higher the price.
2. Equipment configuration: The higher the configuration of the paper cup machine, the higher the price. The addition of functions such as automatic feeding, automatic sealing, and automatic counting will increase the price of the equipment.
3. Brand and manufacturer: Paper cup machines and equipment from well-known brands are usually more expensive, but the quality and service are guaranteed.
4. Regional differences: Factors such as price levels and labor costs in different regions will also affect the price of paper cup machines and equipment.
If you want to know the price of a paper cup machine, please contact BTM. We will quote you according to your needs.
