BTM medium speed disposable cup machine is designed to produce single and double sided PE/PLA/water-based coated paper cups with a stable production speed of 90-120 pcs/min. This medium speed paper cup machine can be used to produce 3-16OZ size paper cups. If you need to produce other sizes of paper cups, we can also customize them according to your needs. With the growing demand for disposable paper cups, BTM medium speed paper cup machine has become the core equipment in the field of paper products machinery with its efficient and stable production capacity.
Medium Speed Disposable Cup Machine Parameters
| Model | BTM-90 |
| Production speed | 90-120 pcs/min |
| Voltage | 380V/50hz three phase |
| Machine package size(L*W*H) | 2180*1050*1600mm |
| Material requirements | Single and double coated paper |
| Power | 7kw |
| Weight | 2100Kg |
| Corresponding to the paper cup size | 3-16oz |
| Speed | 90-120pcs/min |
| Paperthickness requirements | 150-350g/㎡; ±20g/㎡ |
| Gas supply requirements | 0.6-0.8mpa; 0.4m3/min |
| Machine size (L*W*H) | 900*600*1800mm |
| The cup body sticksin | Ultrasonic/Copper Strip (Use Ultrasonic for over 12 oz.) |
| Bottom rolling flowers | Nest bottom, air blowing, hot air heating method |
The above are the detailed parameters of BTM’s 90-120PCS/Min paper cup machine. In addition, we also provide equipment with various capacities such as 60-70pcs/min, 70-90pcs/min, 120-150pcs/min, etc. If you want to get the price of the paper cup machine with the above capacity, please contact BTM.
90-120pcs/Min Paper Cup Machine Design Features

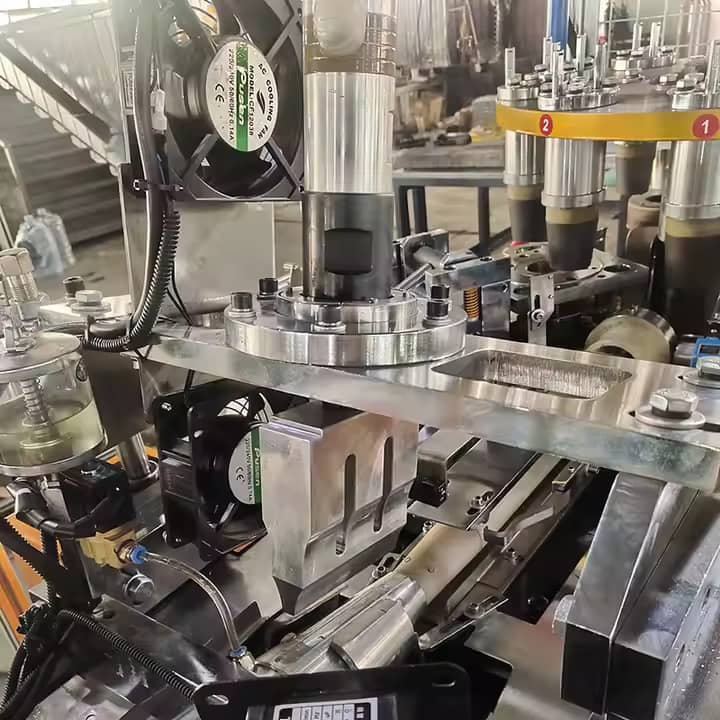

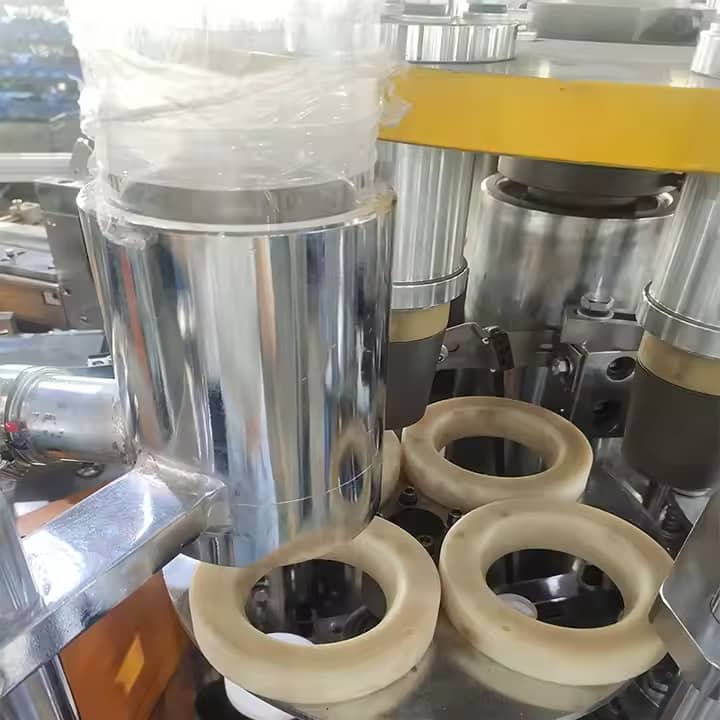

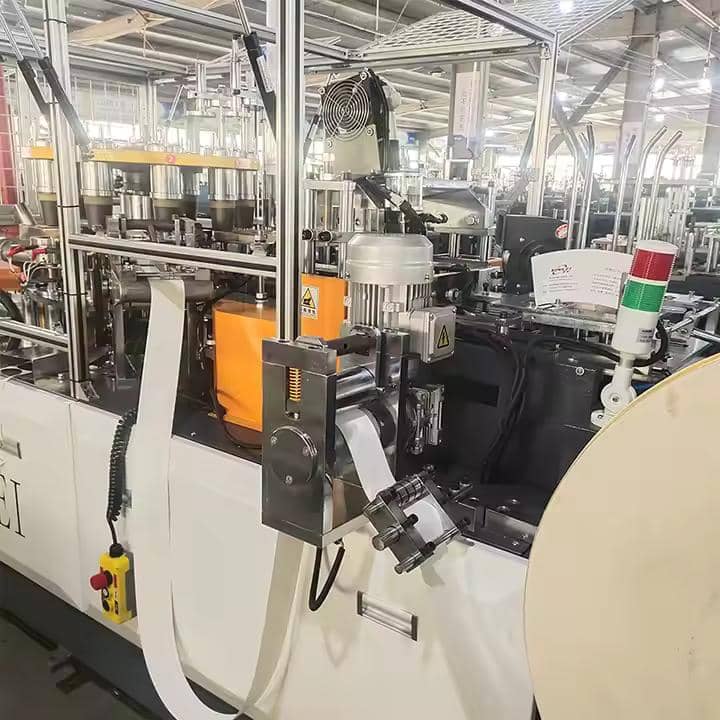

This medium-speed disposable paper cup machine is designed to be driven by a main motor to work, realizing the perfect combination of gear and cam structure. It is a fully automatic paper cup forming equipment, from automatic paper feeding to ultrasonic welding, oiling, preheating, knurling, forming, cup unloading and other processes are all completed automatically. This equipment can be used to produce 3-16OZ single-coated or double-coated paper cups. After our company’s comprehensive optimization design, the entire machine now uses a single aluminum plate instead of the previous three-plate machine, and the machine failure rate is greatly reduced. Therefore, the stability of the whole machine is greatly improved, and paper cups of different specifications can be stably produced.
Disposable Paper Cup Machine Core Features
1. Intelligent production process: Adopt intelligent PLC control system to realize fully automated operation from raw material feeding to finished product stacking.
2. Adapt to various specifications of paper cup production: support 3-16OZ paper cup production, quickly switch molds through modular design, compatible with single/double-sided PE coated paper, degradable environmentally friendly paper and other materials.
3. Key components are selected from international brands: The core components of the equipment are selected from Siemens and other industry leading brands to ensure that the equipment can still operate stably in high temperature and high humidity environments, and the failure rate is reduced.
4. High production efficiency: The production efficiency of this medium-speed paper cup machine can reach up to 120 pieces/min, support 8 hours of continuous operation, and high production efficiency.
5. Diversified scene applications: widely used in paper cup manufacturers, food packaging companies and OEM factories, support ice cream cups, coffee cups and other derivative paper products processing, can produce paper cups with a capacity of 3-16OZ.
6. Build a complete production line: BTM also provides paper cup die-cutting machines, creasing machines, paper cup packaging machines, etc. to form an automated production line to improve the production efficiency and quality of paper cups.
BTM Disposable Paper Cup Making Machine Manufacturer
BTM Disposable Paper Cup Making Machine Manufacturer takes technological innovation as its core, and provides high-quality, automated equipment to global paper cup manufacturers through intelligent production, global services and flexible customized production. Whether you are a start-up or a medium-sized or large enterprise, we can match you with equipment with appropriate production capacity and budget according to your production needs. Our equipment and professional team will become your trusted partner. If you want to know more about paper cup machines or supporting equipment, please contact us.
