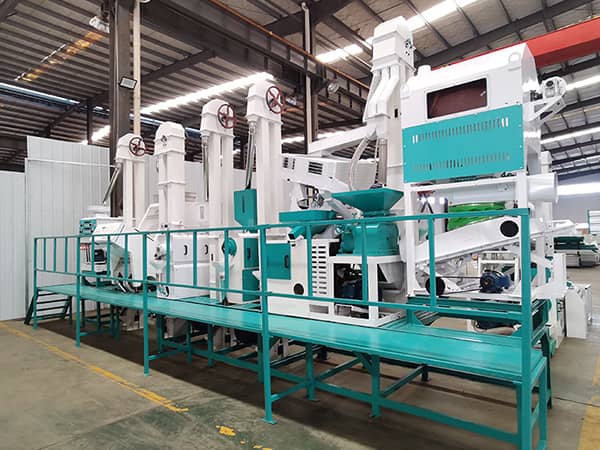

BTM’s 20ton rice mil line is specially designed for large enterprises, which can realize the fully automatic processing from paddy to finished edible rice. The equipment can produce 1000-1200kg rice per hour (20t/day capacity), and process 1400-1700kg of paddy per hour. The 20TPD rice milling line mainly includes rice cleaning machine, decontamination machine, separator, whitening machine, rice grader, elevator and other equipment. In addition, BTM can also add polishing machine, color sorter and other equipment according to the actual needs of customers. The equipment has compact structure, simple operation and high output, and is widely used in grain processing enterprises, agricultural cooperatives, food production enterprises, etc.
20Ton Rice Mill Line Parameters
| 6LN-15/15SF Combined rice mill | cleaning sieve&destoner | 4kw | 1-1.2T/H |
| husker | 6.25 | 1-1.2T | |
| paddy separator | 0.75KW | 1-1.2T | |
| rice whitener | 18.5KW | 1-1.2T | |
| MNMG13.8 polisher | separated polisher machine | 22-30KW | 850-1800KG |
| MMJP63×3 grader | broken rice sifter | 1.5 | 1-1.5T |
| packing machine | 3DCS-25 | 2.5-25KG | 300-420bag/hour |
| DCS-50 | 5-50KG | 300bag/hour | |
| other Optional equipment | husk crusher (grinder), whitener, color sorter, husk bin, rice bin, parboiled equipment, and so on | ||
20TPD Rice Milling Plant Included Equipment

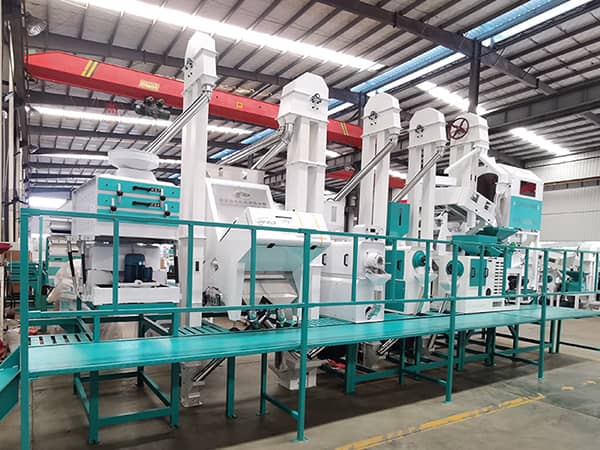

The complete rice milling plant includes complete rice husking, rice milling and packaging processes. One production line solves the automation process from rice feeding to packaged polished rice. The 20ton rice mill line includes elevator, stone remover, rice ridging machine, rice separator, rice milling machine, rice polishing machine, grader, color sorter, packaging machine and other equipment. In addition, you can also match multiple rice mills according to your actual production needs to achieve multi-level rice milling and screening.
1. Elevator: The bucket elevator transports the rice vertically to the subsequent processing parts, and the lifting height can be adjusted.
2. Stone remover: Removes impurities such as sand, stone, and metal through gravity classification, and the vibrating screen surface + air flow combination cleaning, and the quartz stone separation accuracy reaches 0.2mm.
3. Ridge machine: This step is to separate the brown rice from the rice. It uses the friction between the high-speed rotating grinding wheel and the rice to make the rice husk fall off.
4. Rice separator: Used to separate unhulled rice from brown rice.
5. Rice mill: Grind brown rice into white rice, and remove the germ and bran on the surface of the brown rice through grinding.
6. Rice polishing machine: Water mist polishing technology, ultimate polishing and brightening, the lightening rate reaches 15%-20%, and the commodity value is improved.
7. Grading machine: Separate whole rice/broken rice according to particle size, so that the polishing rate is increased to more than 68%.
8. Color sorter: Use photoelectric sensors to identify and remove different-colored grains and moldy grains to improve the quality of the finished product.
9. Packaging machine: Quantitatively package the processed polished rice to extend the shelf life.
20TPD Rill Mill Line Main Features
1. Multi-stage rice milling process with segmented decompression milling to reduce broken rice rate and heat damage.
2. Sand roller rice milling is adopted to optimize pressure control, so the rice grains are of high integrity and good gloss.
3. Flexible configuration, which can be flexibly combined according to different rice milling needs.
4. High degree of automation: From raw materials to finished rice, one-time processing is achieved, and the processing flow is simple.
How To Choose a Suitable Rice Mill Manufacturer?
When choosing a rice mill production line, the manufacturer’s technical level and service quality are key factors. Choose BTM Supplier, which not only has advanced production equipment and technology, but also provides comprehensive after-sales service and technical support. BTM Rice Mill has won wide recognition in the market for its high-quality products and thoughtful services. The rice mill production line is not only stable in performance, but also easy to operate, which is very suitable for enterprises of all sizes.
BTM Rice Milling Machine Output
BTM rice milling equipment manufacturer provides equipment with suitable output for rice processing plants of different specifications. We provide single rice milling machines and rice milling production lines. The output of single rice milling machines is 400-600kg/h, 600-800kg/h, 800-1000kg/h, 1100-1500kg/h, 1800-2300kg/h…. The output of complete rice mill processing plant is 15-18TPD, 20-25TPD, 30-40TPD, 50-60TPD and other outputs. If you need to know the price of rice milling machine or other questions, please contact us.
